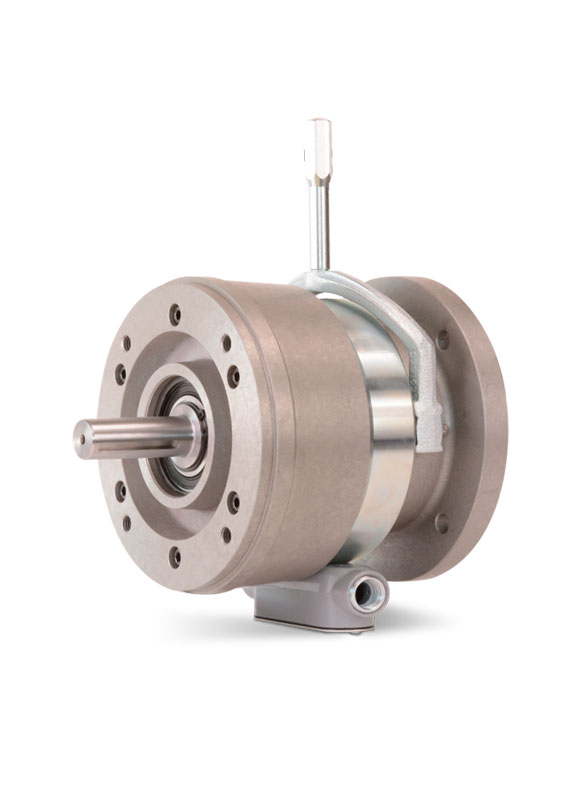

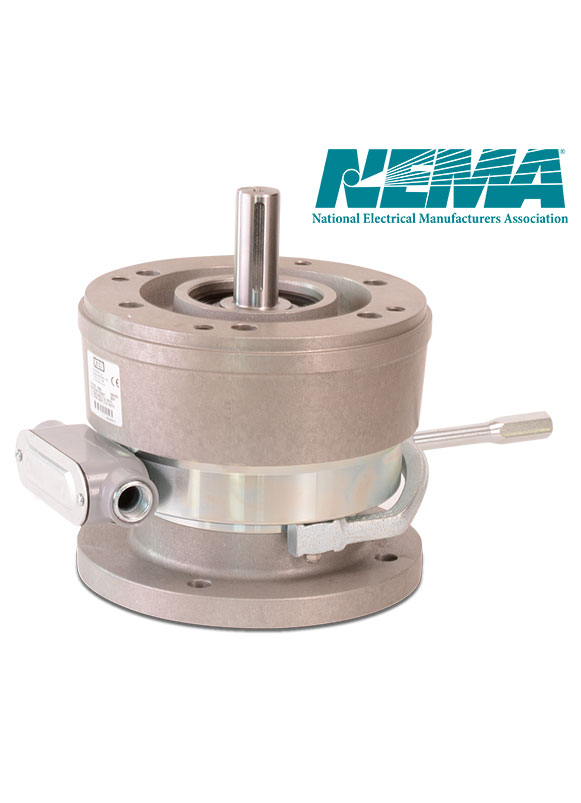

KEB’s Double C-Face Brake is a failsafe spring-set brake for standard NEMA C-Face motors, offering a reliable power-off braking solution. Made for retrofit applications or when a separate brake is needed, this brake engages automatically when power is removed.
Product Details

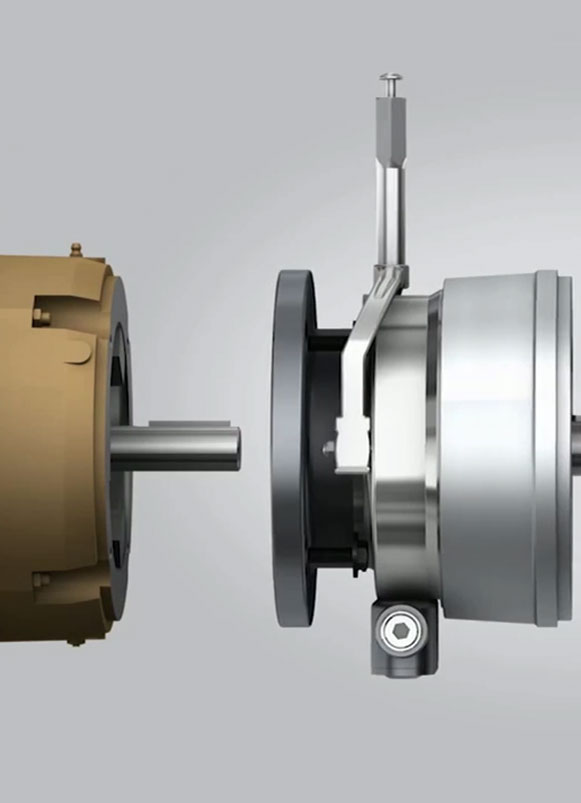

Retrofit-ready: Our Double C-Face units eliminate the need for expensive double-shaft motors. They can be configured across a wide range of frame motors, from fractional to 20 HP applications.
Compatibility: Easily add a power-off brake to standard NEMA C-Face motors. From 56C to 256TC frame sizes and up to 110 lbs., this spring set design applies braking torque whenever power is removed, offering a reliable failsafe function.
Durability: With a NEMA 4X design (utilizing recommended sealing methods), we offer optional features like nickel-plated shafts and corrosion-resistant paint treatment. The self-contained design, with integrated bearing supports, ensures a long service life even in demanding duty cycles or washdown environments.
Flexibility: Mount either horizontally or vertically. No special kits are needed for mounting with gearboxes in horizontal or vertical orientations. However, large brakes may require a mounting kit for vertical mount applications. Discuss with a KEB engineer for guidance.
Tech Specs
Electrical
• DC Coil Voltage: 12, 24, 48, 105, 205 VCD Standard (Custom upon request)
• Duty: 100% on
• Insulation Class: B as standard (F & H available as an option)
Mechanical
• Type: Spring-set, electrically released
• Torque Range: 3 to 75 lbft
• Maximum torque available up to 110 lb ft depending on brake size and frame compatibility
Environment
• Protection: NEMA 4 with proper sealing
Options
• Locking hand release option.
• Low power heater reduces condensation build-up for applications in a humid environment.
• A microswitch can verify the brake state and be fed back to a control.
• Locking Hand Release: The hand release can be locked in the open position. This allows for hands-free maintenance.
• Additional customization options include special shaft materials such as stainless steel or nickel-plated steel for high corrosion resistance.
3D Models
To access a 3D model of the brake, use the dropdown selections to configure your part. Once selected, click "Submit" to generate the appropriate stock number. A download form will appear requesting your email and location for delivery of the CAD model.
All 3D models are configured to match your brake’s specific torque rating, coil voltage, and frame size, ensuring accuracy in your system design.
Why Choose Double C-Face Brake from KEB?

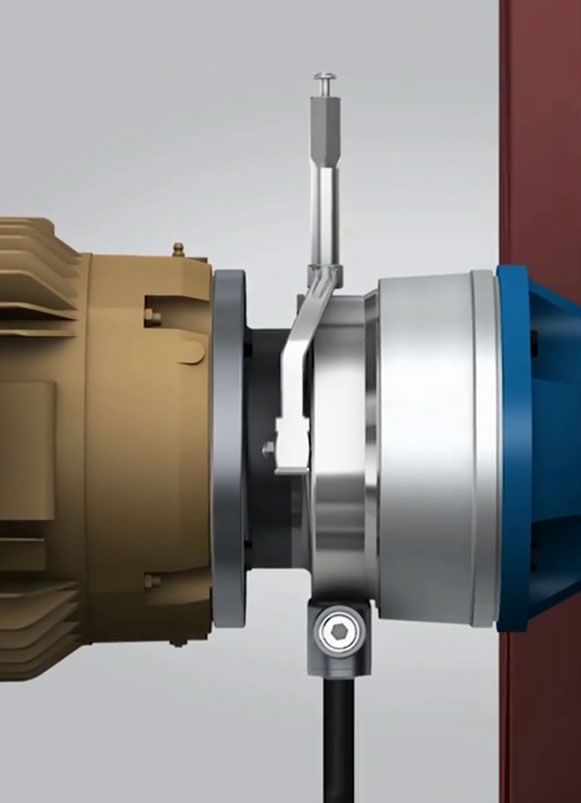

Integrated Design: Self-contained housing with input/output NEMA flanges and bearing support
Custom Coil Options: Standard DC coils (12VDC, 24VDC, 105VDC, 205VDC)
AC Compatibility: Optional rectifiers for 230VAC and 460VAC setups
Moisture Control: Dual-coil heater option minimizes condensation buildup
