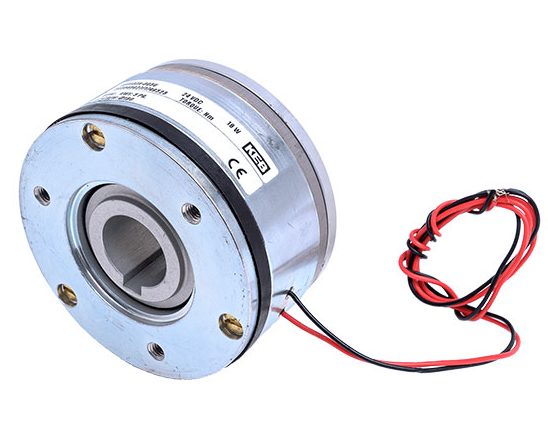

KEB's P1 permanent magnet brake provides compact, backlash-free power-off braking designed for high-performance automation. An electrically released brake, the P1 brake uses strong neodymium magnets to deliver exceptional torque density. Optimized to provide the highest torque-to-diameter ratio, this permanent magnet brake is ideal for servo motor systems, robotics, and medical devices where precision and safety are critical.
Brakes
Permanent Magnet Brakes - Power-Off
Product Details
KEB permanent magnet brakes have unlimited ON time and are designed for 100% duty.
Optimized Performance:
- 2nd Generation Magnetic Design: Features rare earth magnets and an efficient magnetic circuit layout for best-in-class torque density.

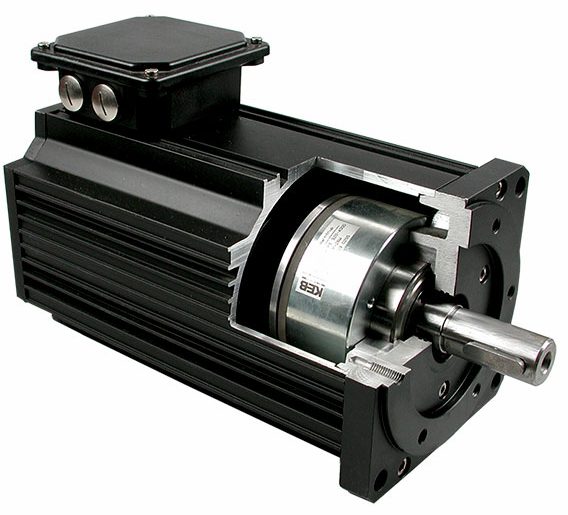

- Application Fit: Ideal for robotic arms, medical devices, and servo applications requiring precise positioning and secure holding. It is designed to operate across a wide temperature range.
Precision and Safety:
- Failsafe Braking: The brake engages in the absence of power, delivering reliable holding for vertical axes and emergency-stop situations.
Backlash-Free Holding: Armature and hub are riveted together, eliminating play in static or dynamic applications.
Zero Residual Torque: Engineered air gap and membrane spring design ensure complete disengagement, even under high switching frequency.
Flexible Mechanical Integration:

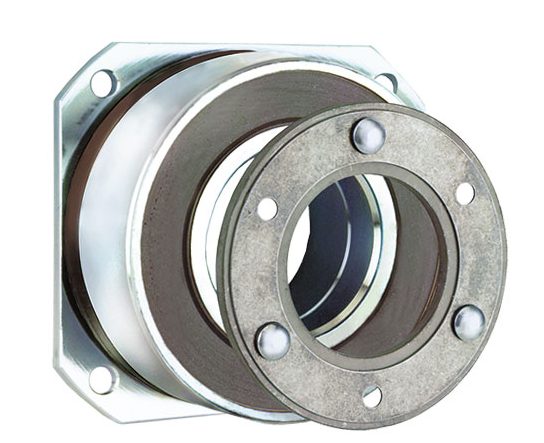

- Available with round or square flanges and internal or external hub options to suit tight mechanical envelopes or ease of assembly.
Class F insulation is standard (H is available upon request).
Tech Specs
Electrical
- DC Coil Voltage: 12, 24, 48, 105, 205 VDC Standard (Custom upon request)
- Duty: 100% ON
- Insulation Class: F is standard (H upon request)
- Polarity sensitive connection: Positive = red lead, Negative = black lead
Mechanical
- Type: Permanent magnet set, electrically released
- Torque Range: 0.35 to 130 Nm
- Maximum Rated Speed: Up to 3,000 rpm (dependent on size)
- Friction Work: Designed for high cycling applications with Wrmax values rated up to 5 × 10⁴ J (see manual for size-specific values)
Certifications
CSA on Standard Product
CE
Environment
- Protection Type: Dry Operation
- Operating Temperature: -15 … 100° C
- Cold climate version available on request
Options
- Connectors: Crimped leads or custom connectors are available
- Flange Designs: Round or square, customer-specified
- Hub Options: Without the hub, an internal hub for compactness or an external hub for easier access
3D Models
To access a 3D model of the brake, use the dropdown selections to configure your part. Once selected, click "Submit" to generate the appropriate stock number. A download form will appear requesting your email and location for delivery of the CAD model.
