The C6 S14 IPC is a complete machine controller that is capable of real-time motion control. The S14 offers brilliant visualization with both resistive and capacitive touch options.
HMIs

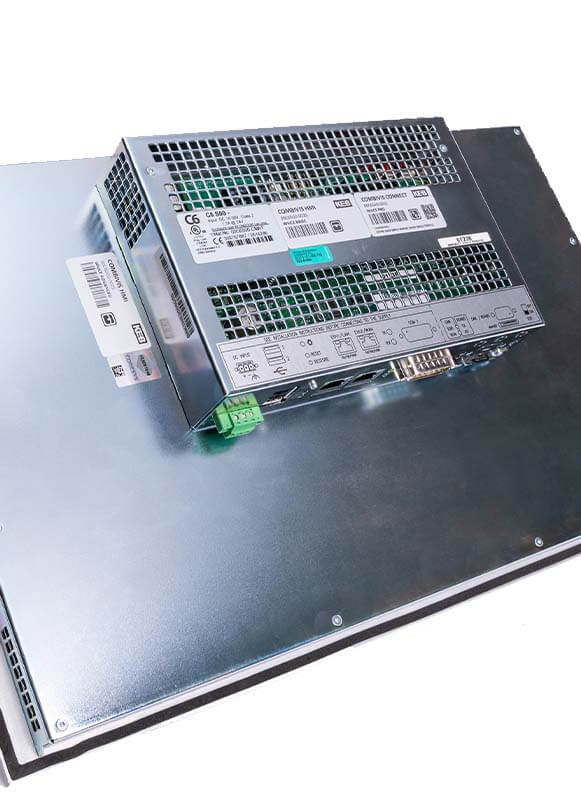

C6 S14 IPC
Product Details

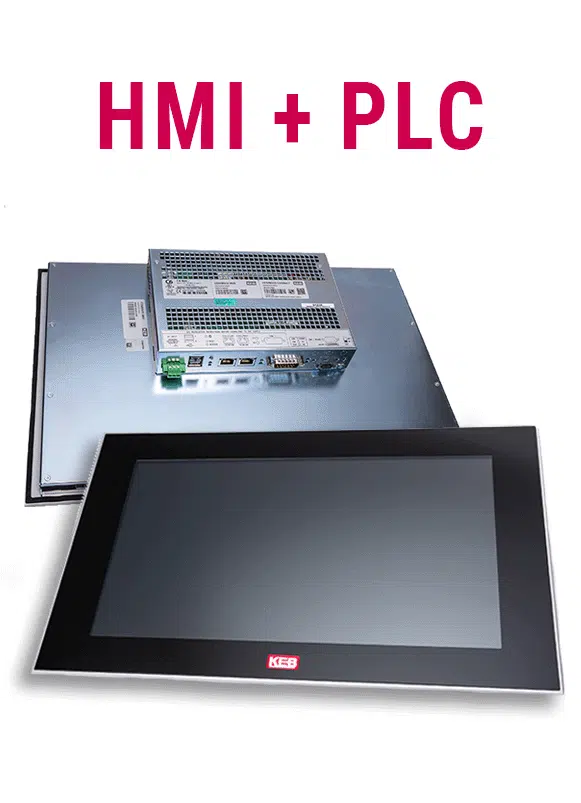

The S14 is a PLC+HMI combo that is ideal for medium-high performance machines.
The S14 boasts an ARM Cortex A9 processor and EtherCAT master that allows for coordinated motion control.

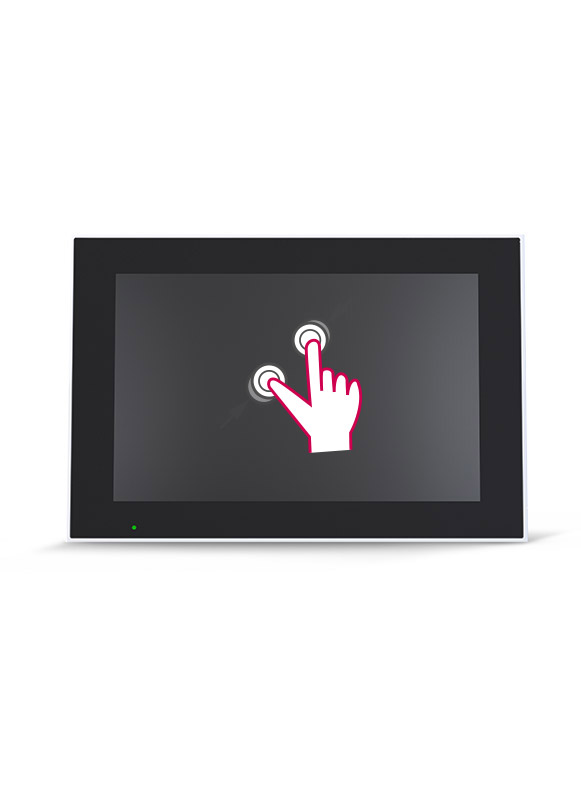

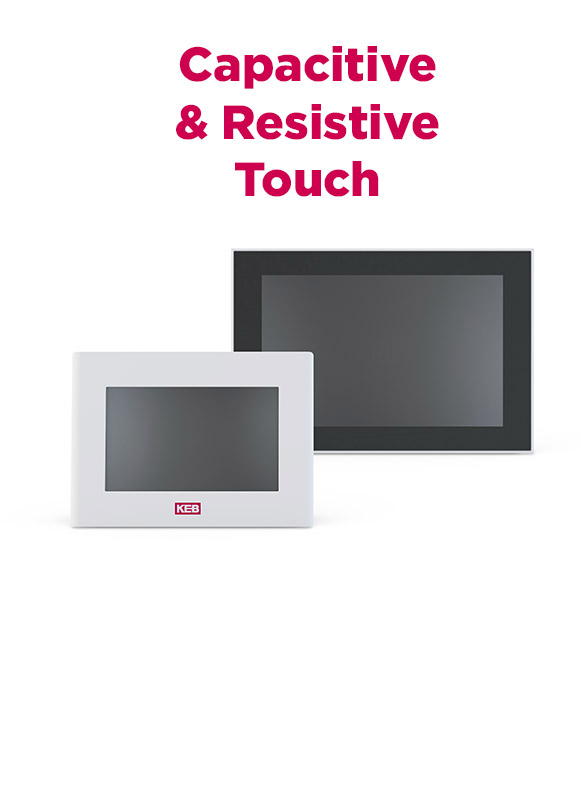

The displays are offered in both 4:3 and 16:9 formats in graduated sizes up to 15.6”. Both resistive and capacitive touch technology is available.
A Micro UPS is included for the backup of critical parameters and programs in the event of a power loss.
KEB’s CONNECT secure remote access platform is included with the device.
Tech Specs
Electrical
• CPU: ARM Cortex A9 i.MX6 DualLite @ 1 GHz
• System Memory: 1GB DDR3-800
• Input Voltage: 18 – 36 VDC incl. micro UPS (First charge in 30s, recharge in 15s)
• Operating System: Windows Embedded Compact 7 Pro
• HMI: COMBIVIS Studio HMI runtime
• Remote Control: COMBIVIS Connect™
• Mass Memory: eMMC (Solid State Disk). 4 GB for operating system and runtime environments (internal, not removable)
• Application memory: 8 GB project memory for further free use
• Retain memory: 128 KB persistent and retain
Mechanical
• Sizes: 7.0″ – 15.6″
• Front Panel: Aluminum, Polycarbonate IP66K protection
• Touch Tecnology: Capacitive and Resistive (4 or 5-wire resistive)
Certifications
• CE
• cULus LISTED
Interfaces
• 1xRS232/422/485 (DB15M)
• 2×10/100/1000 Mbps (RJ45)
• 2xUSB 2.0
• SD/SDHC card slot
• CAN (optional)
Environment
• Operating Temperature: 0 … 50 °C
• Storage Temperature: -20 … 60 °C
• Humidity: 95% max (non-condensing)
